APP INVENTOR硬件交互学习教程04——蓝牙控制继电器

// 引脚定义
const int ledPin1 =  5;// the number of the LED pin
const int ledPin2 =  6;
const int ledPin3 =  3;
const int bluePin =  6;// the number of the LED pin
const int greenPin =  5;
const int redPin =  3;
const int beepPin =  15;

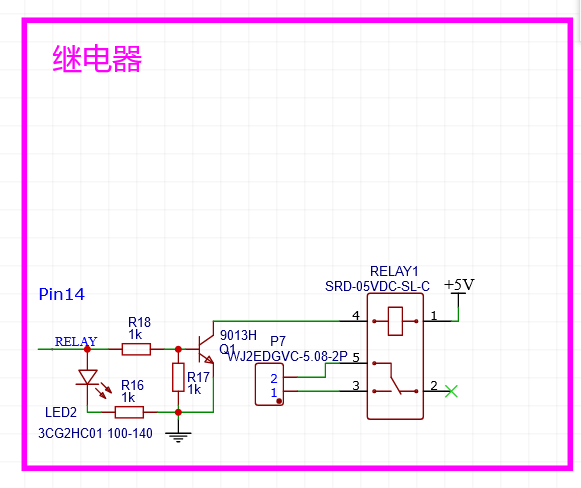

const int relayPin =  14;
const int keyPin1 =  2;
const int keyPin2 =  4;
const int keyPin3 =  7;
const int bluetoothPin = 13;

// 变量定义

int inByte=0;   //接收参数

#define TRUE 1
#define FALSE 0
void setup()
{
  // 配置输出引脚
  pinMode(ledPin1, OUTPUT);
  pinMode(ledPin2, OUTPUT);
  pinMode(ledPin3, OUTPUT);
  pinMode(beepPin, OUTPUT);
  pinMode(relayPin, OUTPUT);
  // 配置输入引脚
  pinMode(keyPin1, INPUT);
  pinMode(keyPin2, INPUT);
  pinMode(keyPin3, INPUT);
  pinMode(bluetoothPin, INPUT);
  // 配置串口
  Serial.begin(9600);

}
void loop() {
  if(Serial.available()) {
  inByte = Serial.read();

    if(inByte == 'H'){ digitalWrite(relayPin, HIGH);}
    if(inByte == 'L'){ digitalWrite(relayPin, LOW);}

  }
}
